RealworldConnector is a pseudo interface that allows communcation with the real world through the TunOutScheduler. More...

#include <RealworldConnector.h>

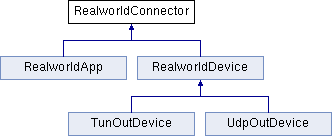

Inheritance diagram for RealworldConnector:

List of all members.

Public Member Functions
	RealworldConnector ()
virtual	~RealworldConnector ()
virtual int	numInitStages () const
virtual void	initialize (int stage)
	Initialization of the module.
virtual void	handleMessage (cMessage *msg)
	The "main loop".
Protected Member Functions
virtual void	transmitToNetwork (cPacket *msg)
	Send a message to the (realworld) network.
virtual void	updateDisplayString ()
virtual char *	encapsulate (cPacket msg, unsigned int length, sockaddr *addr, socklen_t addrlen)=0
	Converts an IP datagram to a data block for sending it to the (realworld) network.
virtual cPacket *	decapsulate (char buf, uint32_t length, sockaddr addr, socklen_t addrlen)=0
	Parses data received from the (realworld) network and converts it into a cMessage.
virtual bool	isApp ()
	If the Connector connects to an application, this method has to be overwritten to return "true".
Protected Attributes
int	gateIndexNetwOut
unsigned int	mtu
long	numSent
long	numSendError
long	numRcvdOK
long	numRcvError
cMessage *	packetNotification
RealtimeScheduler::PacketBuffer	packetBuffer
RealtimeScheduler *	scheduler
PacketParser *	parser

Detailed Description

RealworldConnector is a pseudo interface that allows communcation with the real world through the TunOutScheduler.

Definition at line 66 of file RealworldConnector.h.

Constructor & Destructor Documentation

RealworldConnector::RealworldConnector ( )

Definition at line 29 of file RealworldConnector.cc.

{
    packetNotification = NULL;
}

RealworldConnector::~RealworldConnector ( ) [virtual]

Definition at line 34 of file RealworldConnector.cc.

{
    cancelAndDelete(packetNotification);
}

Member Function Documentation

virtual cPacket* RealworldConnector::decapsulate	(	char *	buf,
		uint32_t	length,
		sockaddr *	addr,
		socklen_t	addrlen
	)			`[protected, pure virtual]`

Parses data received from the (realworld) network and converts it into a cMessage.

Parameters:

	buf	A pointer to the data to be parsed
	length	The lenght of the buffer in bytes
	addr	If needed, the destination address
	addrlen	If needed, the length of the address

Returns:: The parsed message

Implemented in RealworldApp, TunOutDevice, and UdpOutDevice.

Referenced by handleMessage().

virtual char* RealworldConnector::encapsulate	(	cPacket *	msg,
		unsigned int *	length,
		sockaddr **	addr,
		socklen_t *	addrlen
	)			`[protected, pure virtual]`

Converts an IP datagram to a data block for sending it to the (realworld) network.

Parameters:

	msg	A pointer to the message to be converted
	length	A pointer to an int that will hold the length of the converted data
	addr	If needed, the destination address
	addrlen	If needed, the length of the address

Returns:: A pointer to the converted data

Implemented in RealworldApp, TunOutDevice, and UdpOutDevice.

Referenced by transmitToNetwork().

void RealworldConnector::handleMessage ( cMessage * msg ) [virtual]

The "main loop".

Every message that is received or send is handled by this method

Definition at line 81 of file RealworldConnector.cc.

{
    // Packet from the real world...
    if (msg==packetNotification) {
        EV << "[RealworldConnector::handleMessage()]\n"
           << "    Message from outside. Queue length = "
           << packetBuffer.size() << endl;

        while( packetBuffer.size() > 0 ) {
            // get packet from buffer and parse it

            RealtimeScheduler::PacketBufferEntry packet = *(packetBuffer.begin());
            packetBuffer.pop_front();
            char* buf = packet.data;
            uint32_t len = packet.length;
            sockaddr* addr = packet.addr;
            socklen_t addrlen = packet.addrlen;
            cMessage *parsedPacket = decapsulate(buf, len, addr, addrlen);
            if (parsedPacket) {
                numRcvdOK++;
                send(parsedPacket, gateIndexNetwOut);
            } else {
                numRcvError++;
            }

        }
    } else // arrived on gate "netwIn"
    {
        // Packet from inside, send to real word
        EV << "[RealworldConnector::handleMessage()]\n"
           << "    Received " << msg << " for transmission"
           << endl;

        transmitToNetwork(check_and_cast<cPacket*>(msg));
    }

    if (ev.isGUI())
        updateDisplayString();

}

void RealworldConnector::initialize ( int stage ) [virtual]

Initialization of the module.

Registers the device at the scheduler and searches for the appropriate payload-parser Will be called automatically at startup

Reimplemented in RealworldDevice.

Definition at line 39 of file RealworldConnector.cc.

{
    if (stage==3) {
        // update display string when addresses have been autoconfigured etc.
        updateDisplayString();
        return;
    }

    // all initialization is done in the first stage
    if (stage!=0)
        return;

    packetNotification = new cMessage("packetNotification");
    mtu = par("mtu");

    scheduler = check_and_cast<RealtimeScheduler *>(simulation.getScheduler());
    scheduler->setInterfaceModule(this, packetNotification, &packetBuffer,
                                  mtu, isApp());

    if (!isApp() ) {
        parser = check_and_cast<PacketParser*>(
                      getParentModule()->getSubmodule("packetParser"));
    } else {
        parser = check_and_cast<PacketParser*>(
                      getParentModule()->getSubmodule("applicationParser"));
    }

    numSent = numRcvdOK = numRcvError = numSendError = 0;
    WATCH(numSent);
    WATCH(numRcvdOK);
    WATCH(numRcvError);
    WATCH(numSendError);

    if (!isApp()) {
        gateIndexNetwOut = gate("netwOut")->getId();
    } else {
        gateIndexNetwOut = gate("to_lowerTier")->getId();
    }

}

virtual bool RealworldConnector::isApp ( ) [inline, protected, virtual]

If the Connector connects to an application, this method has to be overwritten to return "true".

Returns:: false

Reimplemented in RealworldApp.

Definition at line 124 of file RealworldConnector.h.

Referenced by initialize(), and transmitToNetwork().

{return false;}

virtual int RealworldConnector::numInitStages ( void ) const [inline, virtual]

Reimplemented in RealworldDevice.

Definition at line 130 of file RealworldConnector.h.

    {
        return 4;
    }

void RealworldConnector::transmitToNetwork ( cPacket * msg ) [protected, virtual]

Send a message to the (realworld) network.

Parameters:

msg

A pointer to the message to be send

Definition at line 122 of file RealworldConnector.cc.

Referenced by handleMessage().

{
    unsigned int length;
    sockaddr* addr = 0;
    socklen_t addrlen = 0;
    char* buf = encapsulate(msg, &length, &addr, &addrlen);
    if (buf) {
        numSent++;
        int nByte = scheduler->sendBytes(buf, length, addr, addrlen, isApp());

        if (nByte < 0) {
            EV << "[RealworldConnector::transmitToNetwork()]\n"
               << "    Error sending Packet, sendBytes returned " << nByte
               << endl;

            numSendError++;
        } else {
            EV << "[RealworldConnector::transmitToNetwork()]\n"
               << "    Packet (size = " << nByte << ") sent"
               << endl;
        }
    } else {
        numSendError++;
    }

    delete[] buf;
    delete addr;
}

void RealworldConnector::updateDisplayString ( ) [protected, virtual]

Definition at line 151 of file RealworldConnector.cc.

Referenced by handleMessage(), and initialize().

{
    char buf[80];

    if (ev.isDisabled()) {
        // speed up things
        getDisplayString().setTagArg("t",0,"");
    }

    sprintf(buf, "rcv:%ld snt:%ld", numRcvdOK, numSent);

    if (numRcvError>0)
        sprintf(buf+strlen(buf), "\nerrin:%ld errout:%ld", numRcvError,
                numSendError);

    getDisplayString().setTagArg("t",0,buf);
}
